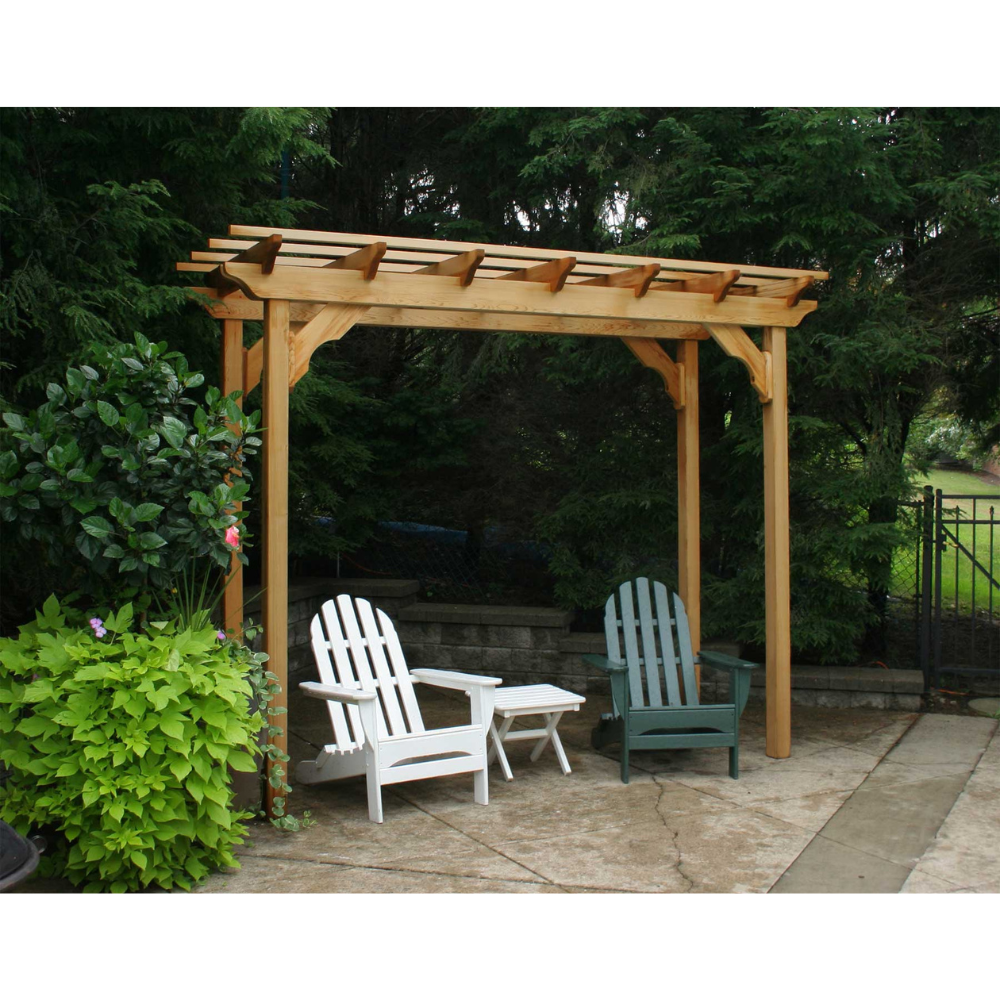

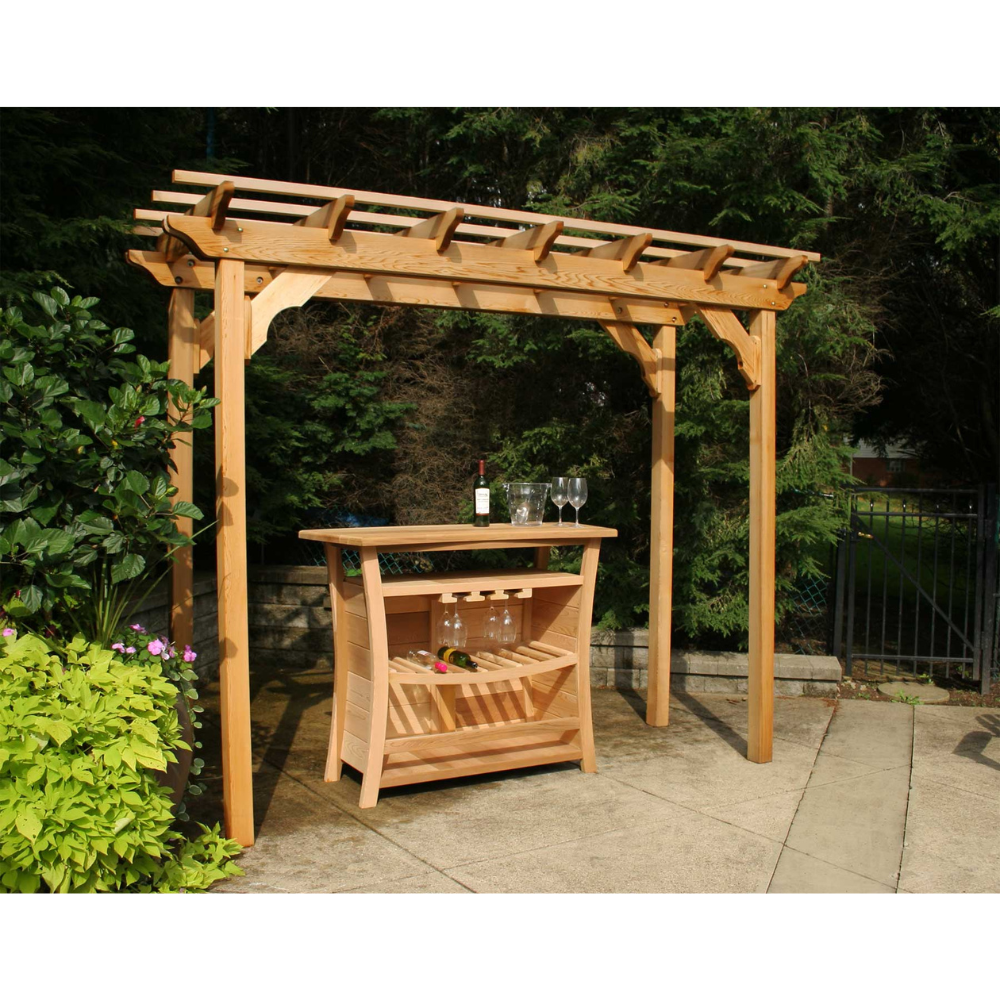

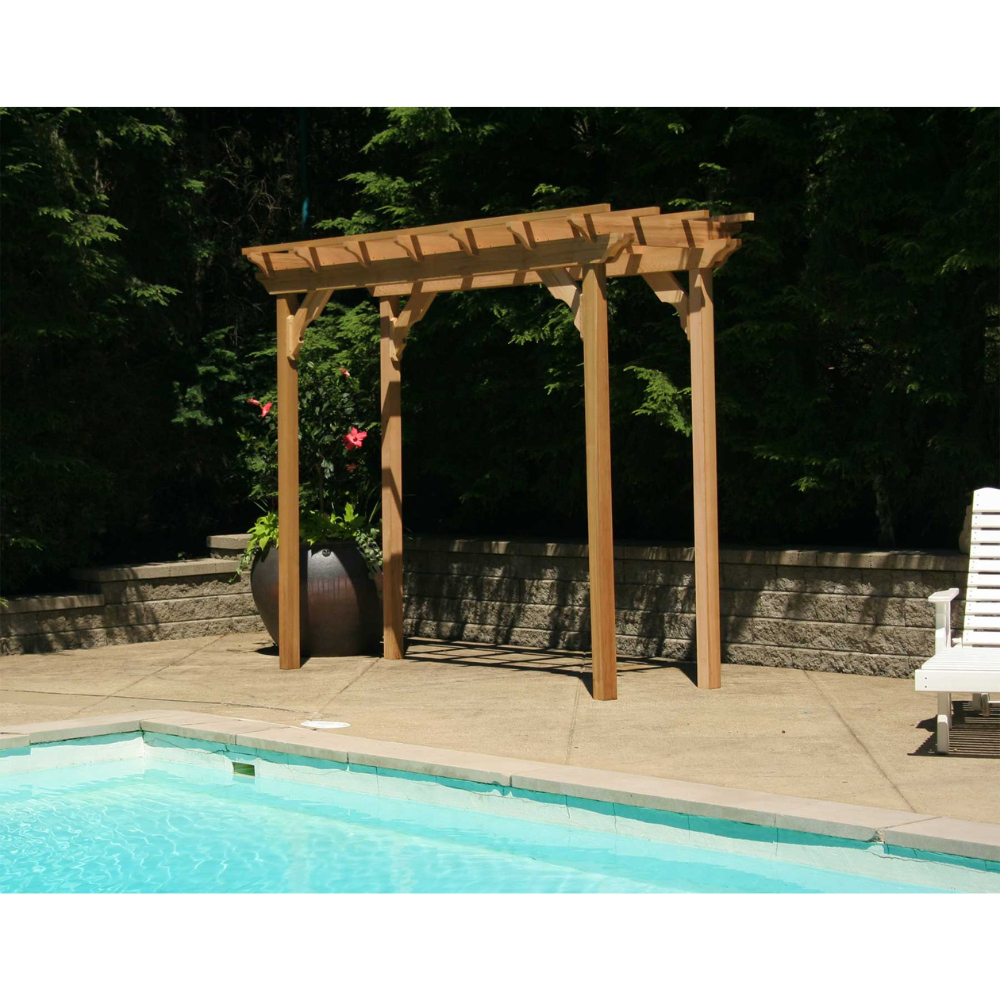

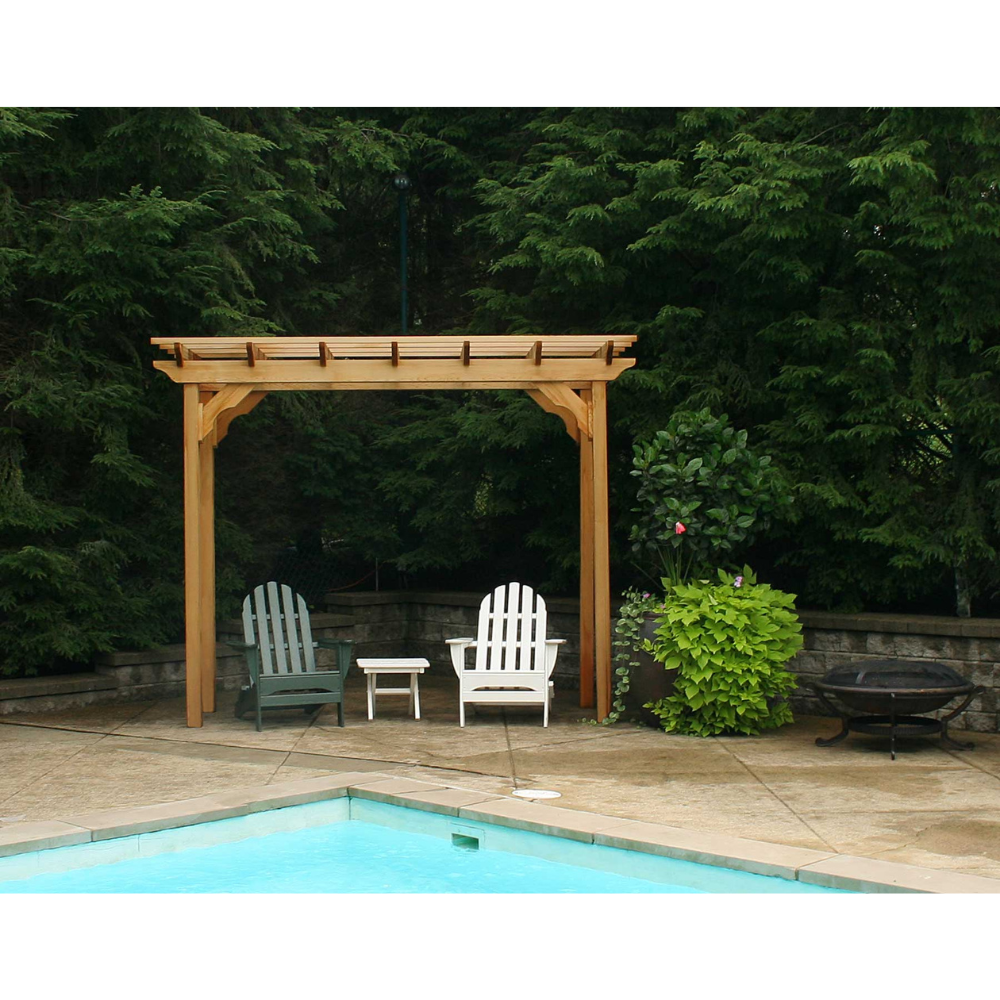

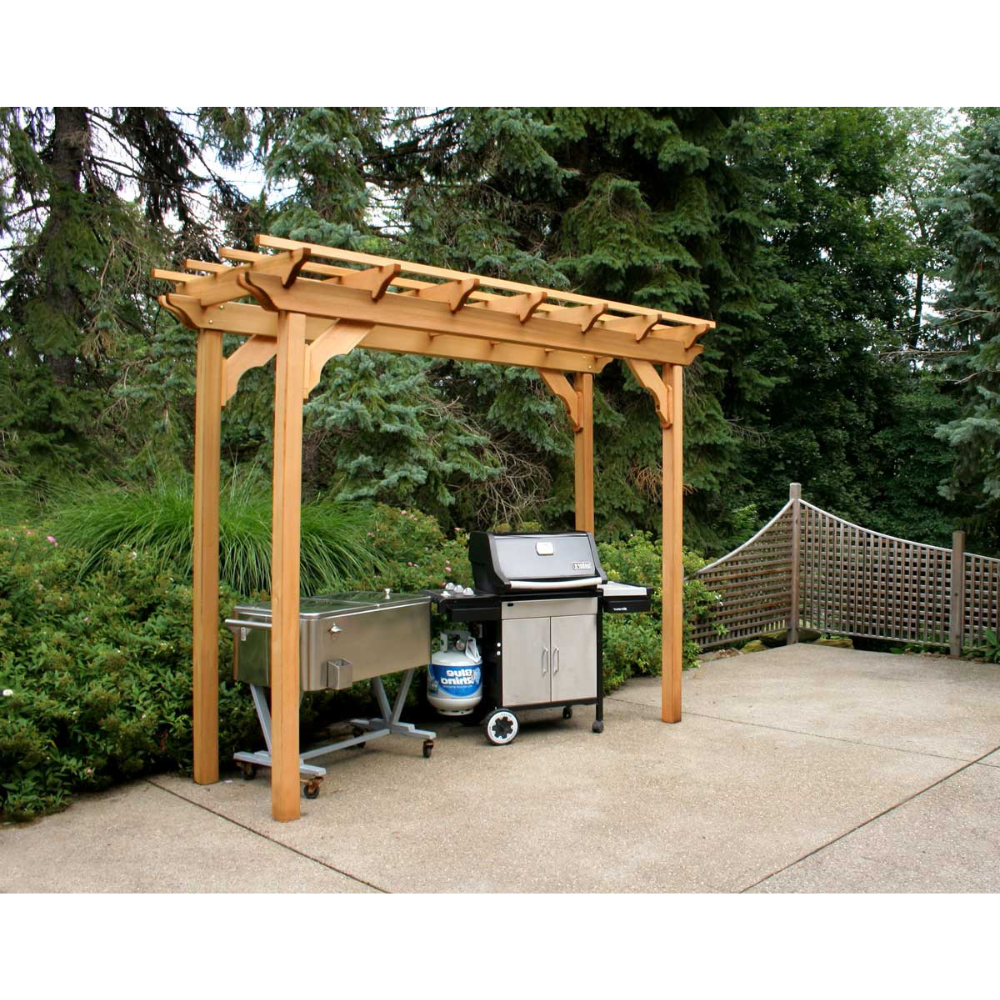

Creekvine Designs Red Cedar Courtyard Pergola

Don’t let a lack of space dampen the ability to turn your yard into a mini-retreat. Our Cedar New Dawn Pergola is ideal for one to two people, or for use in smaller outdoor spaces.

This Pergola will make a nice addition to any home, deck, or yard, providing the ideal place to read a book, eat some delicious barbecue or just hang out while enjoying the summer sun.

SPECS

• Material: Western Red Cedar
• Hardware: Zinc Plated Steel
• Overall, Outside of Posts, and Inside of Posts Size:
• 3' x 8' Pergola
  Overall: 111"L x 47"W x 100"H
  Outside Post to Outside Post: 96"L x 34"W
  Inside Post to Inside Post: 89"L x 27"W

  3' x 10' Pergola
  Overall: 135"L x 47"W x 100"H
  Outside Post to Outside Post: 120"L x 34"W
  Inside Post to Inside Post: 113"L x 27"W

  3' x 12' Pergola
  Overall: 159"L x 47"W x 100"H
  Outside Post to Outside Post: 144"L x 34"W
  Inside Post to Inside Post: 137"L x 27"W

  3' x 14' Pergola
  Overall: 183"L x 47"W x 100"H
  Outside Post to Outside Post: 168"L x 34"W
  Inside Post to Inside Post: 161"L x 27"W

  4' x 8' Pergola
  Overall: 111"L x 59"W x 100"H
  Outside Post to Outside Post: 96"L x 46"W
  Inside Post to Inside Post: 89"L x 39"W

  4' x 10' Pergola
  Overall: 135"L x 59"W x 100"H
  Outside Post to Outside Post: 120"L x 46"W
  Inside Post to Inside Post: 113"L x 39"W

  4' x 12' Pergola
  Overall: 159"L x 59"W x 100"H
  Outside Post to Outside Post: 144"L x 46"W
  Inside Post to Inside Post: 137"L x 39"W

  4' x 14' Pergola
  Overall: 183"L x 59"W x 100"H
  Outside Post to Outside Post: 168"L x 46"W
  Inside Post to Inside Post: 161"L x 39"W

• Headroom: 89.5"
• Beams: 2 x 6
• Runners: 2 x 6
• Top Runners: 2 x 2
• Posts: 4 x 4
• Features: Optional Stain/Sealer in Cedar - Add'l 28% Fee
• Made in the U.S.A.
• Assembly: Kit Form
