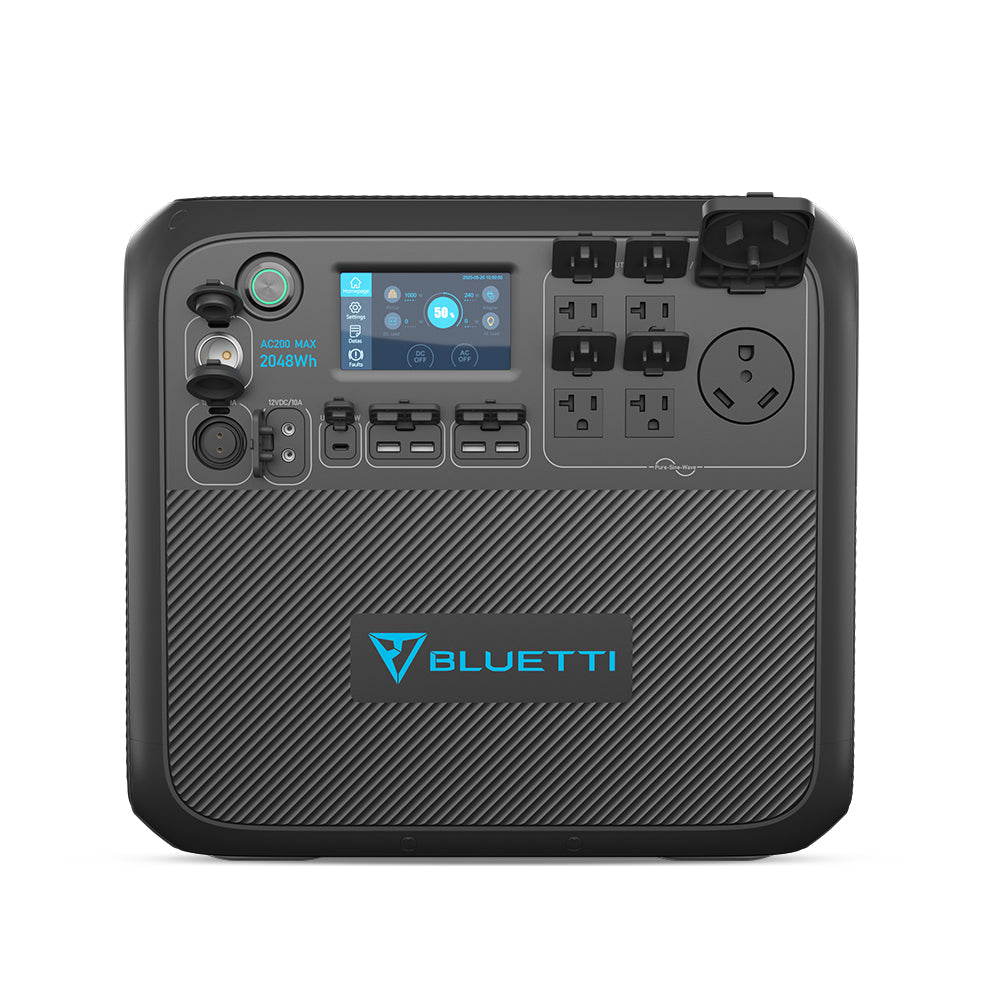

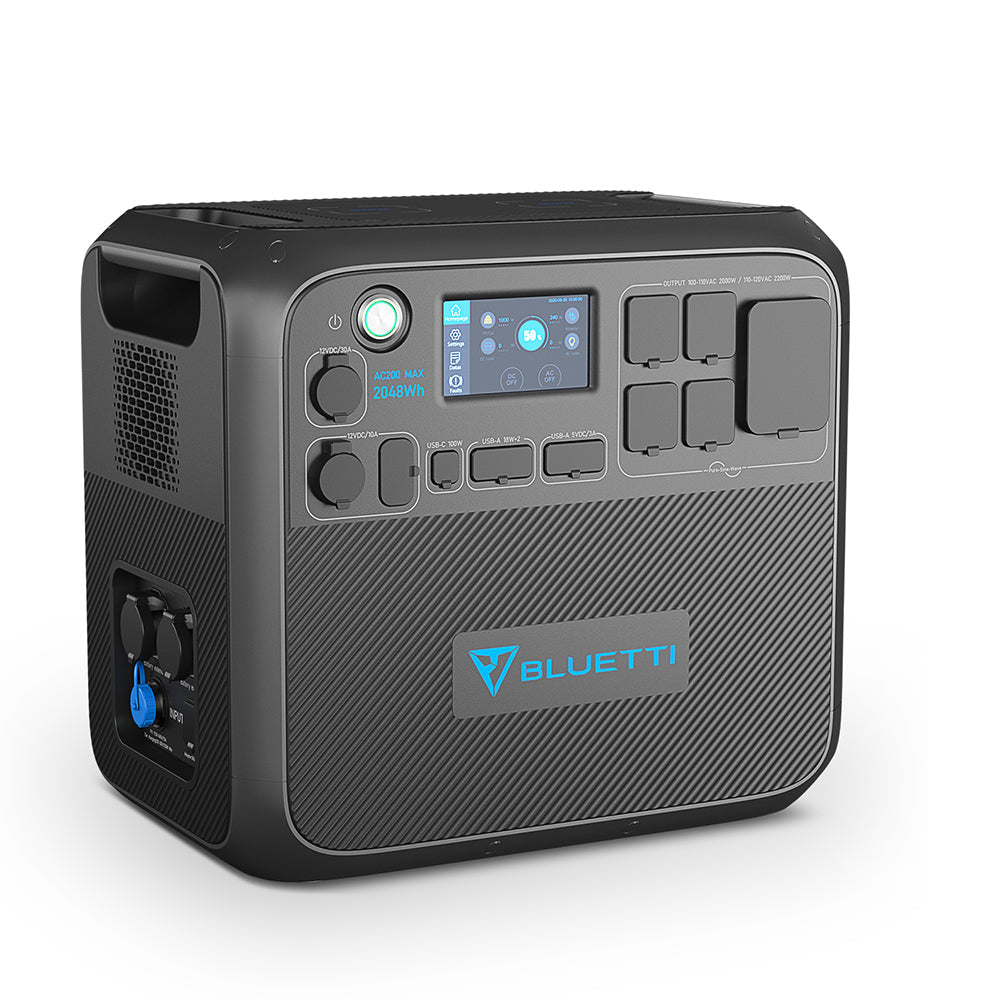

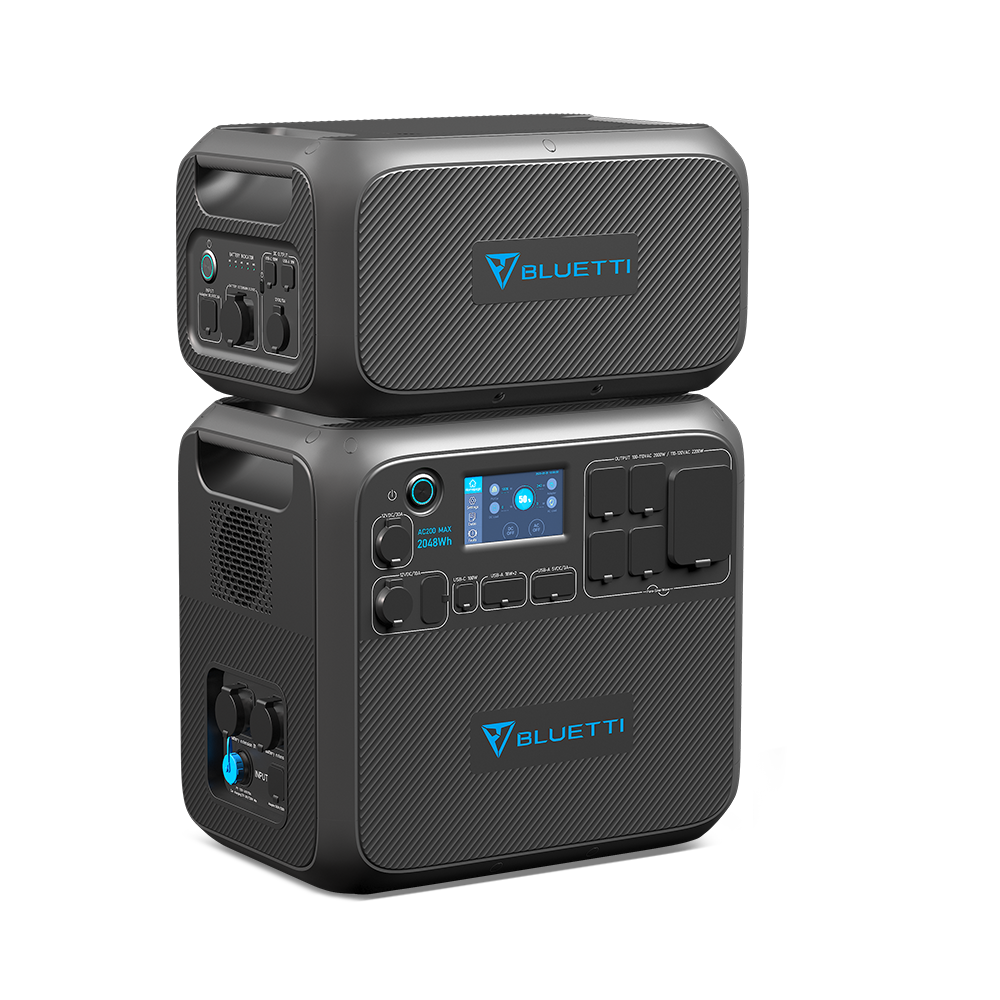

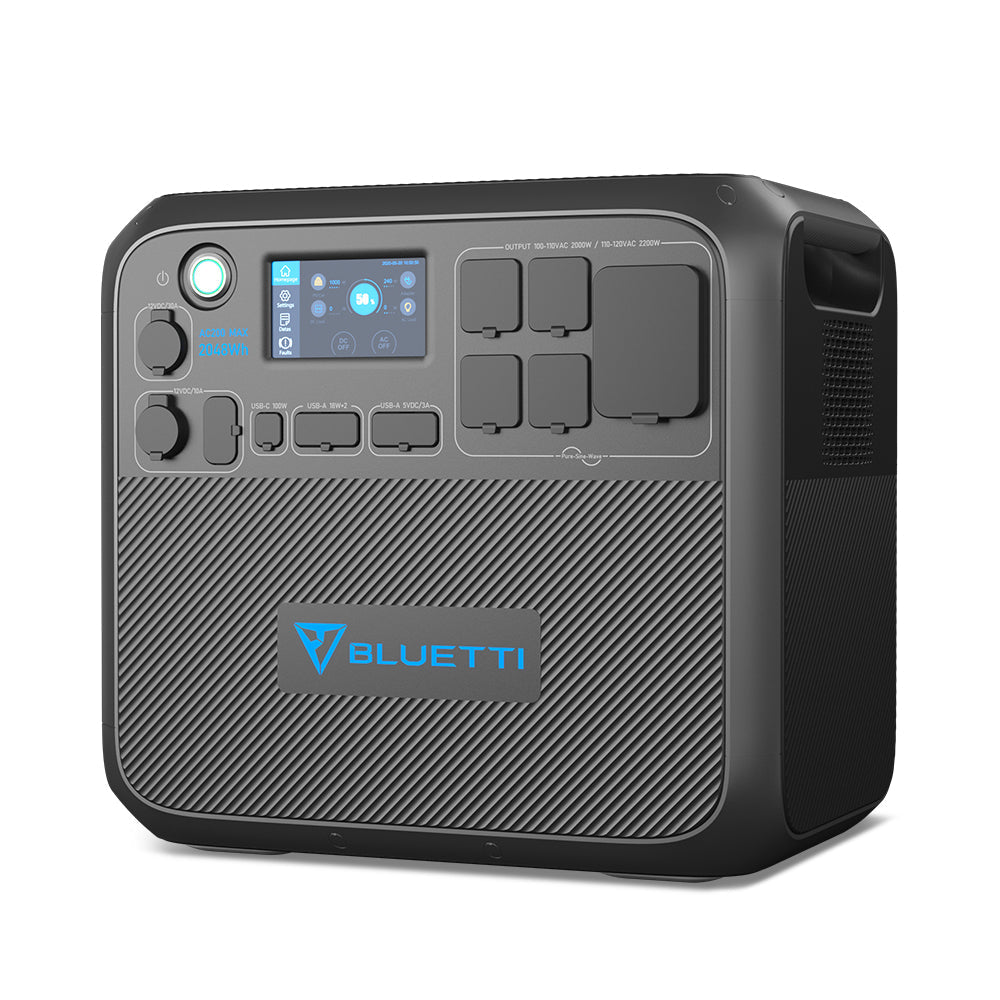

BLUETTI Home Battery Backup Bundle (AC200MAX + B230)

FEATURES

• 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
• 2,048Wh Capacity
• LiFePO4 Battery with 3,500+ Life Cycles to 80%
• Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
• 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
• 900W Max. Solar Input
• 1300W Max. Fast Dual Charging (Solar + AC Adapter)
• Smart Control & Monitor in BLUETTI App

AC200MAX BATTERY INFO

• Capacity: 2,048Wh (51.2V, 40Ah)
• Type: LiFePO4 (Lithium Iron Phosphate)
• Life Cycles: 3,500+ Cycles to 80% Original Capacity
• Shelf-life: Recharge to 80% Every 3-6 Months
• Management System: MPPT Controller, BMS, etc

AC200MAX OUTPUT SPECS

• AC Outlets: 4 x 120V/20A Outlets, 1 x 120V/30A NEMA TT-30,  2200W In Total
• Inverter Type: Pure Sine Wave
• Surge Power: 4800W
• USB-C Port: 2 x 5V/3A USB-A, 2 x 18W USB-A
• 12V DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 12V/10A (Car Outlet), 2 x 12V/10A DC 5521 (5.5mm Outlet) *All Regulated.
• Wireless Charging Pad: 2 x 15W Max. (For Each)

AC200MAX INPUT SPECS

• AC Adapter Input: 400W.
• Solar Input: 900W Max., VOC 10-145VDC, 15A
• Car Input: 12/24V from Cigarette Lighter Port
• Max Input: 1,300W, with AC+Solar Input

AC200MAX RECHARGE TIME

• AC Adapter (400W): ≈5.5~6 Hours
• Solar (900W): ≈3~3.5 Hours (With prime sunshine, ideal orientation,, and low temperature)
• 12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours
• AC Adapter + Solar (1300W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation,, and low temperature)
• Dual AC Adapters (800W): ≈3~3.5 Hours (Extra adapter is REQUIRED)

AC200MAX GENERAL SPECS

• 240V Split Phase Bonding: No. Need 240V power source? Explore here.
• Scalability: Expandable w/ Up to 2 x B230 or 2 x B300
• Pass-through Charging: Yes

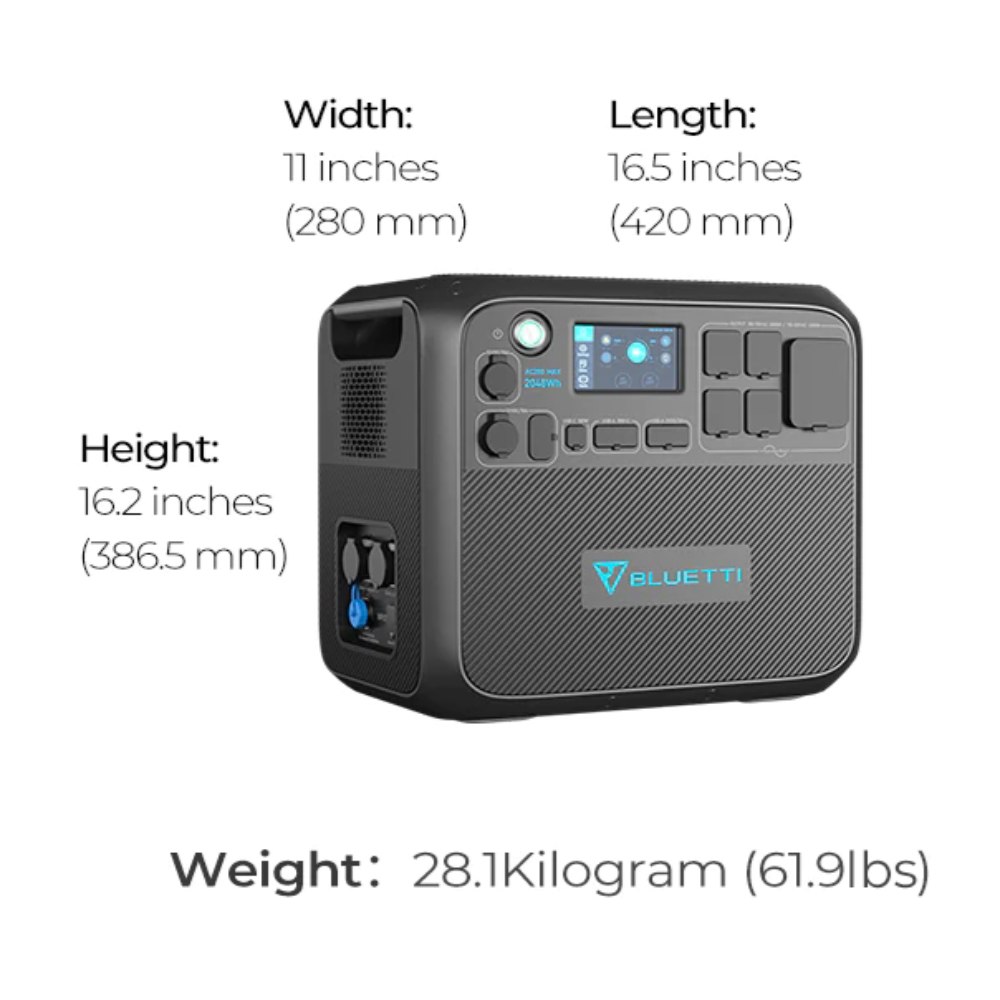

• Weight: 61.9lbs
• Dimensions (LxWxD): 16.5"L x 11"W x 15.2"D
• Operating Temperature: -4-104℉ (-20-40℃)
• Storage Temperature: 14-113℉ (-10-45℃)
• Certifications:
• UL Standard, CEC, DOE, FCC, CA Prop 65
• Warranty: 24 Months

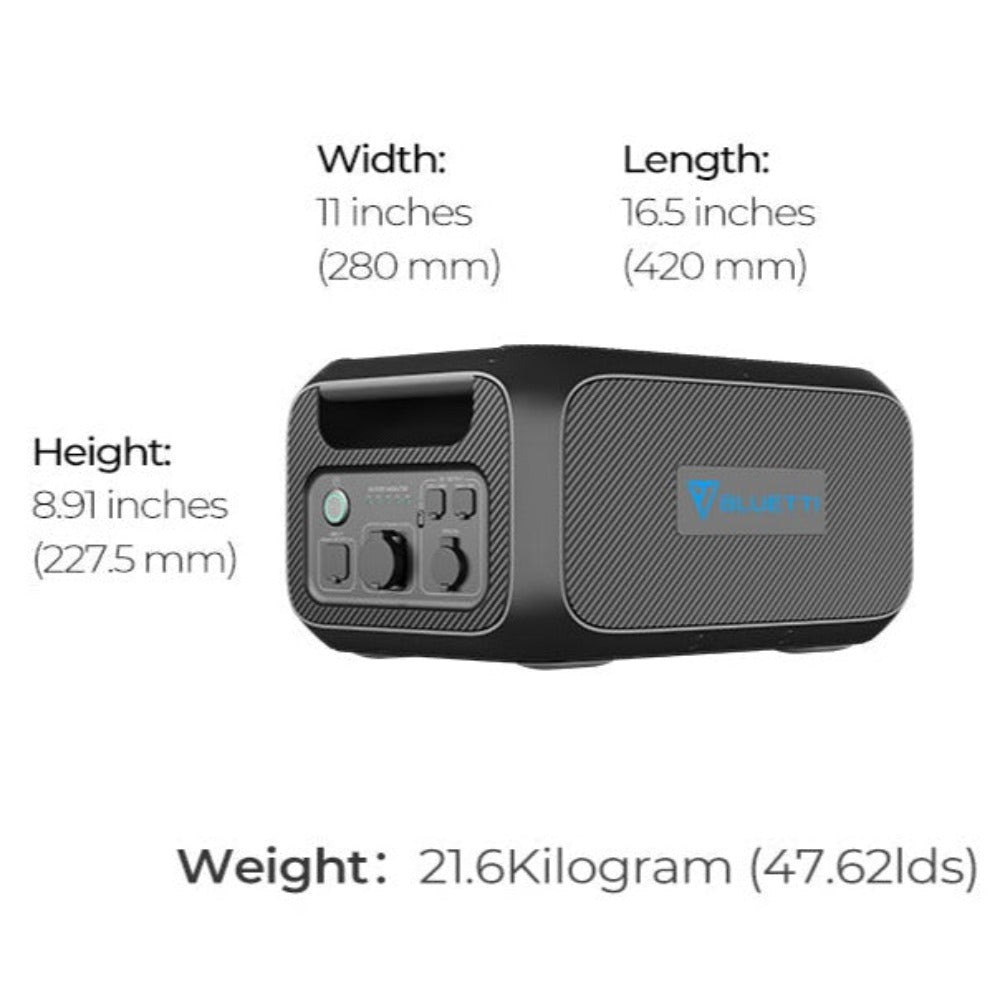

B230 BATTERY INFO

B230 OUTPUT SPECS

• USB-C Port: 1 x 100W Max.
• USB-A Port: 1 x 18W USB-A
• 12V DC Outlets: 1 x 12V/10A (Car Outlet)

B230 INPUT SPECS

• AC Adapter Input: 500W Max.
• Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)
• Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
• Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
• Max Input: 500W

B230 RECHARGE TIME

• AC Adapter (200W): ≈5.5~6 Hours
• Solar (200W): ≈4.5~5 Hours (With prime sunshine, ideal orientation, and low temperature)
• 12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

SMALL CHANGE, HUGE LEAP

The first modular, expandable Bluetti power station.

Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.

LESS TO SPEND, MORE TO LOVE

GET CHARGED IN ANYWAY YOU PREFER

The AC200MAX allows up to 900W of solar input and 400W via the adapter, and you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours!

Furthermore, every Bluetti battery module has its own input port for AC adapters, you’ll get another 400W of input capability with every module added (Up to two for the AC200MAX).

INCOMPARABLE OUTLET VERSATILITY

With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat.

And especially for the RV enthusiasts, the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.
